[PVC] Single Sphere PVC Flange Rubber Joint

TS pressure pipeline production license for the rubber joint industry, ISO9001-2015 international quality system certification, ISO1400:2004 environmental management system certification, OHSAS18001:2007 occupational health and safety management system certification, equipment type test certificate, etc.

Classification :

Rubber expansion joint

Keywords :

[PVC] Single Sphere PVC Flange Rubber Joint

Product Details

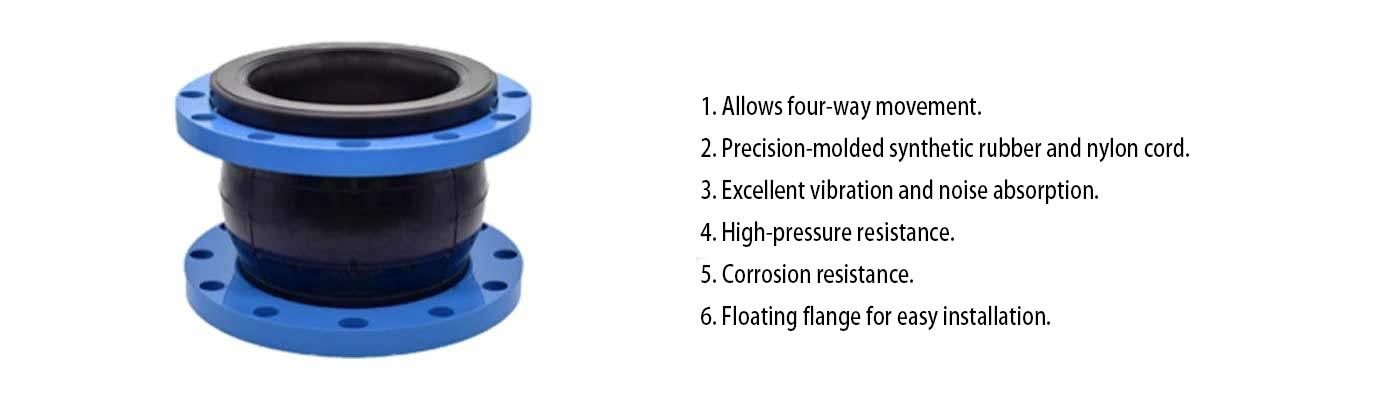

Name: Single ball PVC flange rubber joint

Model: KXT-PVC-EPDM

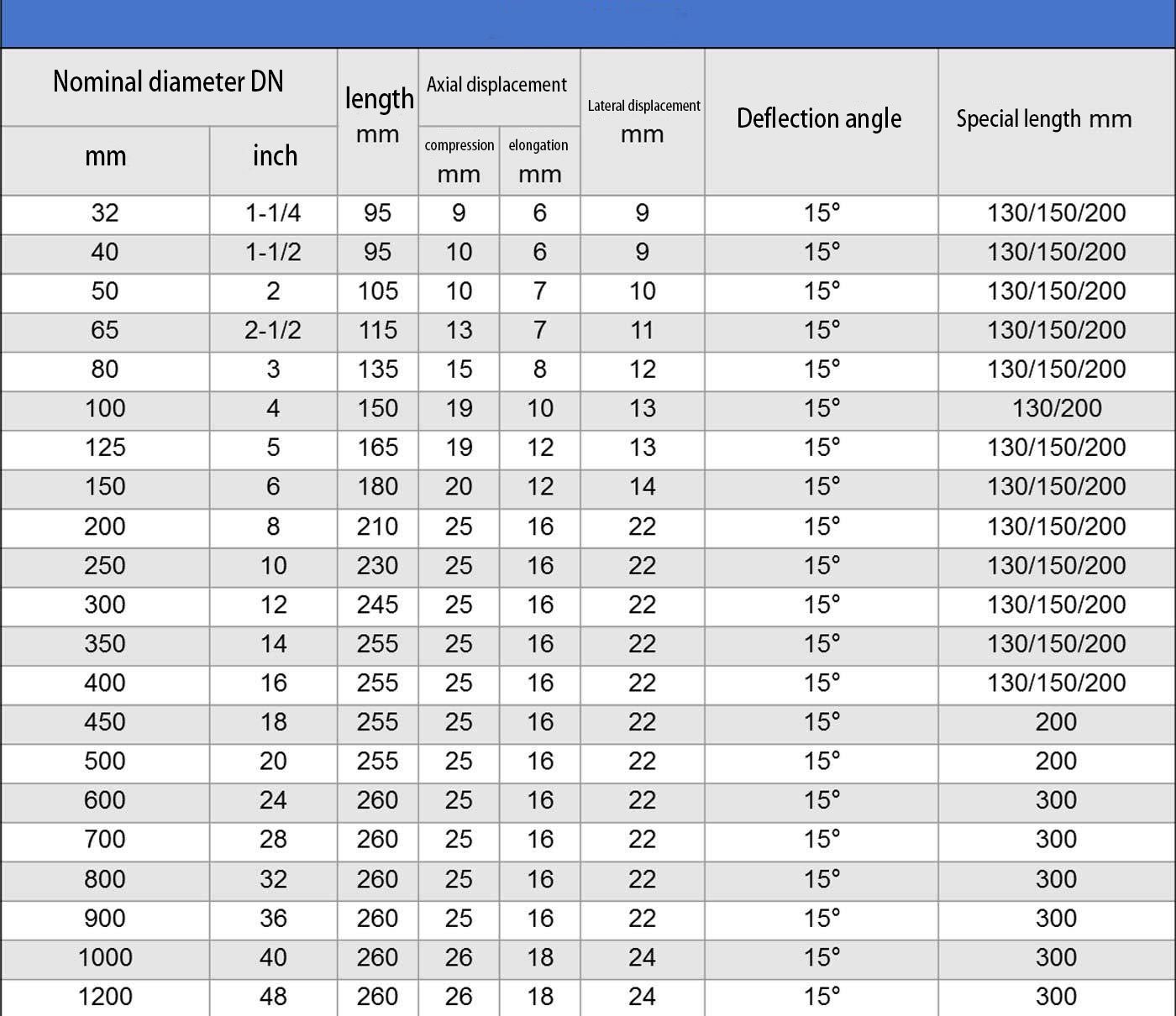

Specification: DN100

Pressure: PN16

Length: 150mm

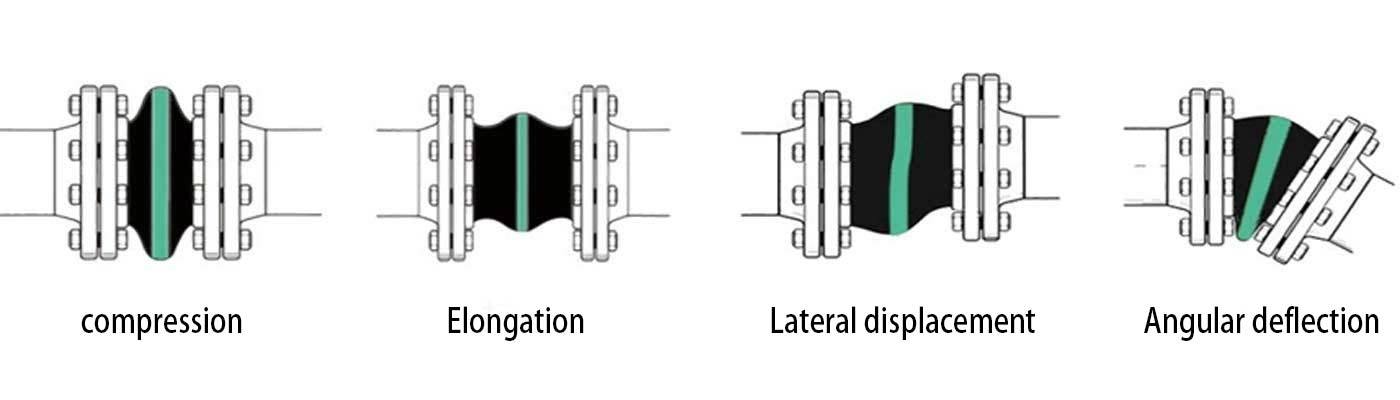

Axial compression: 18mm

Axial tension: 10mm

Lateral displacement: 12mm

Deflection angle: 15°

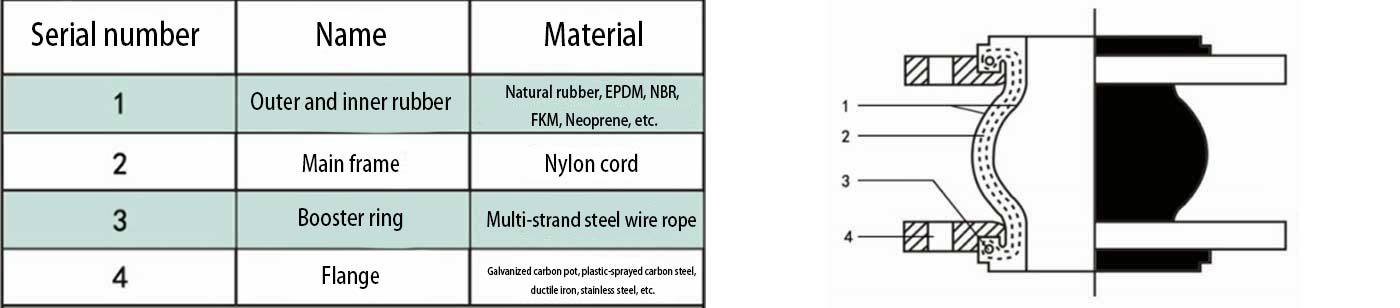

Inner rubber layer: EPDM rubber (all using Japan Mitsui 4045, with a rubber content of about 46%, with *third-party material reports, content test reports and other qualification documents.)

Outer rubber layer: EPDM rubber (all using Japan Mitsui 4045, with a rubber content of about 46%, with *third-party material reports, content test reports and other qualification documents.)

Framework layer: Nylon cord fabric

Pressure ring: Multi-strand steel wire

Flange: PVC

Applicable medium: Seawater, weak acid and alkali

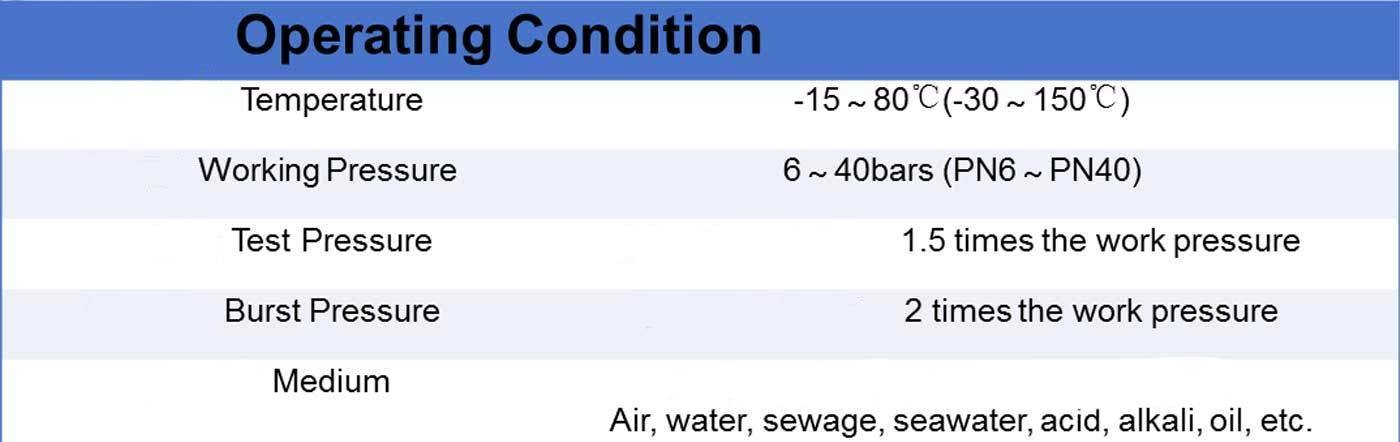

Applicable temperature:

Product certificates: Material certificate, content test report, product pressure test report, *National Type Test Certificate

Qualification certificates: Rubber joint industry TS pressure pipeline production license, ISO9001-2015 *International Quality System Certification, ISO1400:2004 Environmental Management System Certification, OHSAS18001:2007 Occupational Health and Safety Management System Certification, equipment type test certificate, etc.

Flexible pipe fittings made of rubber as the main material and formed by vulcanization process, used to compensate for thermal displacement of pipelines, absorb vibration and reduce noise.
